𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
CAMERA
• Image Sensor: 1/2.8“ Progressive Scan CMOS Starlight Sensor
• Lens
Fixed Lens
• Focal Length: 2.8 mm
• Aperture: F1.6
• Field of View: 125.5° (Diagonal), 107.8° (Horizontal), 57.8° (Vertical)
PT Lens
• Focal Length: 6.0 mm
• Aperture: F1.6
• Field of View: 67.1° (Diagonal), 57.8° (Horizontal), 30.1° (Vertical)
• Night Vision: 850 nm IR LED (40 ft / 12 m), Color Night Vision
• Day/Night Switch: IR-Cut Filter with Auto-Switching
• Lighting: /
• Hub Compatibility: /
• Interface & Button
• 1× RESET Button
• 1× microSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
• Maximum Resolution: 2304 × 1296 px
• Frame Rate: 15 fps
• Digital Zoom: 10.8×
• Video Compression: H.264
• Live View: Yes
• Image Enhancement
• 3DNR
• WDR
• Audio Input & Output: Built-in Microphone and Speaker
• Audio Communication: Two-Way Audio with Noise Cancellation
• Siren Volume: 99 dB (Level measured at 4-inch/10-cm distance)
STORAGE

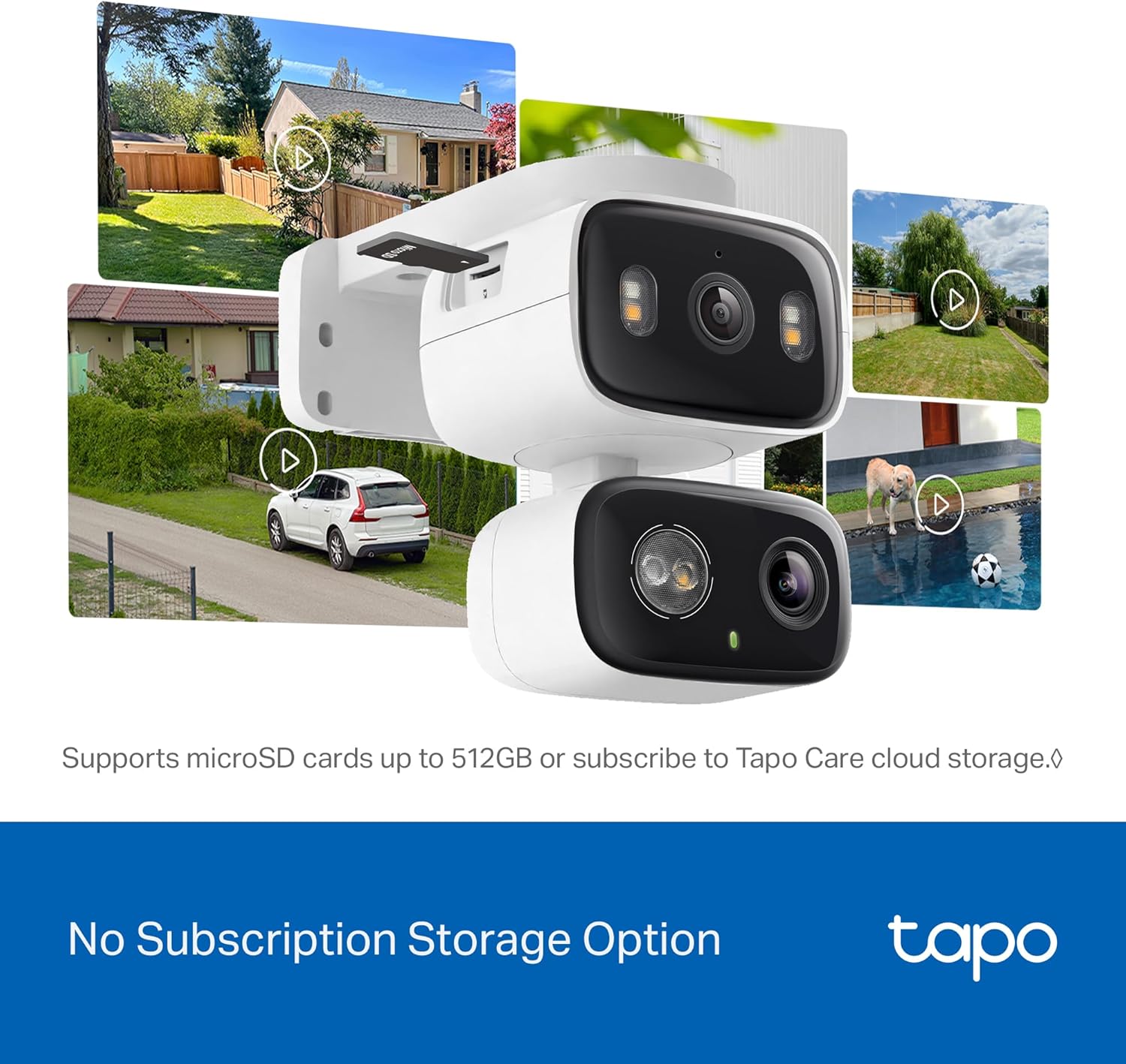

• Local Storage: microSD Card Slot on Camera (Up to 512 GB)
• Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS
• AI Detection
• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Line-Crossing Detection
• Baby Cry Detection
• Glass Break Detection
• Dog Barks Detection
• Cat Meows Detection
• Camera Tampering
• Activity Zones: Yes
*Works with Motion Detection, Person Detection, Pet Detection, and
• Vehicle Detection
• Output Notification
• System Notification
• System Notification with Snapshot (Tapo Care Services)
NETWORK
• Network Connectivity: Connect via Wi-Fi
• Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
• Protocol: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
• Max. Distance Between Hub and Camera/Doorbell: /
• Ethernet Port: /
• RTSP: Yes
• ONVIF: Yes
• Transmission Rate
• 11b: 11 Mbps
• 11g: 54 Mbps
• 11n: 72.2 Mbps
SECURITY
• On-Device Machine Learning
• 128-bit AES Encryption with SSL/TLS
• PWPA/WPA2-PSK
POWER
• Power Source: 5 V DC Power Adapter
• Input Voltage: 100-240 V, 50/60 Hz, 0.3A
• Output Voltage: 5.0 V, 2.0 A (Type-C Power)
• Power Cord Length: 3 m
• Typical Power Consumption: 3.0W
• Maximum Power Consumption: 9.0 W
GENERAL
• Smart Integration: Google Assistant, Amazon Alexa, Samsung SmartThings
• Weather Resistance: IP65
• Mounting Options
• Tabletop
• Wall-Mounted
• Ceiling-Mounted
• Pole-Mounted
• Operating Temperature: -20 ºC ~ 50 ºC (-4 °F ~ 122 °F)
• Storage Temperature: -40 ºC ~ 60 ºC (-40 °F ~ 140 °F)
• Operating Humidity: 10% ~ 90% RH, Non-condensing
• Storage Humidity: 0 ~ 90% RH, Non-condensing
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• Tapo C246D Camera × 1
• Mounting Bracket × 1
• Mounting Template Sticker × 1
• Mounting Anchors × 4
• Mounting Screws × 4
• Power Adapter × 1
• 3 m USB Adapter Cable × 1
• Quick Start Guide
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions( W X D X H ): 3.07*3.02*4.20 in (78*76.83*106.83 mm)
• Weight: 9.77 oz / 277 g
